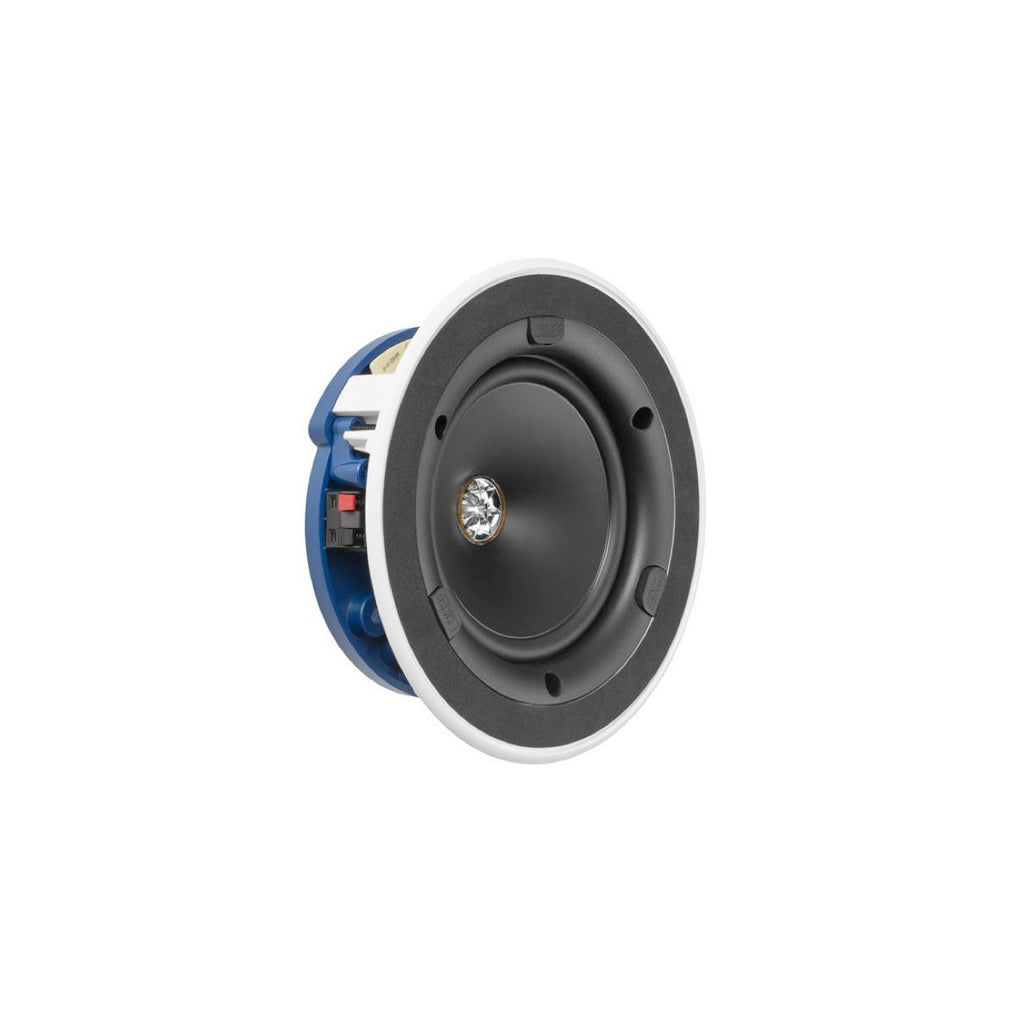

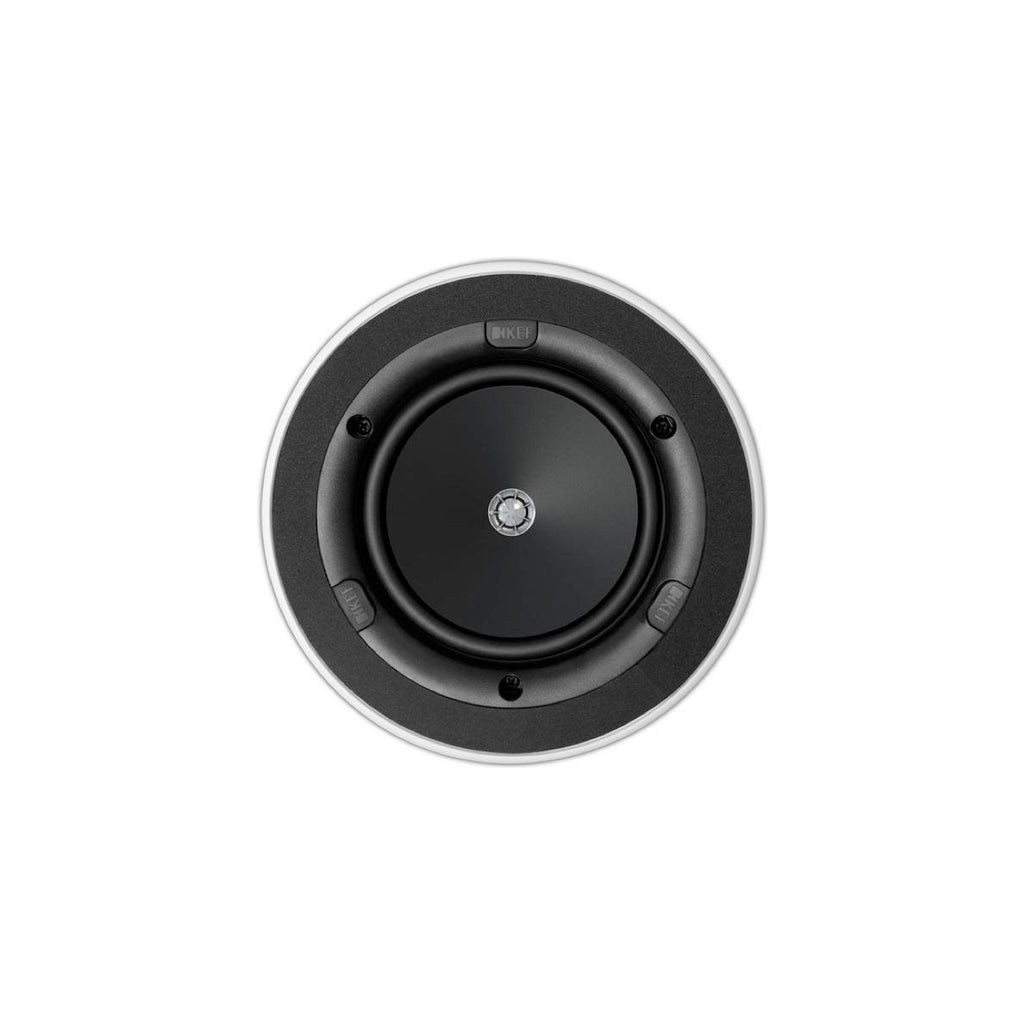

KEF Ci1300QR
A flush-mounted, frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QRfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.
SPECIFICAITONS
NOMINAL IMPEDANCE
8 Ohms
SENSITIVITY
87dB (2.83V/ 1m)
FREQUENCY RESPONSE (±6DB)
OPEN-BACKED
45Hz - 34kHz
FREQUENCY RANGE (-10DB)
38Hz-30kHz
NOMINAL COVERAGE (DEGREES)
130
MAX SPL (DB)
103
CROSSOVER FREQUENCY
3.8kHz
DRIVE UNITS
LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
RECOMMENDED AMPLIFIER POWER
10-100W
RECOMMENDED HIGH-PASS FILTER (HZ)
50Hz
PRODUCT EXTERNAL DIMENSIONS
Diameter Ø: 200.6mm (7.9in)
Depth: 104.6mm (4.12in)
CUT-OUT DIMENSIONS
Diameter Ø: 158mm (6.22in.)
NET WEIGHT
1.45kg (3.19Ibs.)
MOUNTING DEPTH FROM SURFACE
101mm (3.98in.)
OPTIONAL ROUGH IN FRAME
NA
OPTIONAL REAR ENCLOSURE
NA
IDEAL REAR VOLUME(L)
15
MINIMUM REAR VOLUME(L)
10
SAFETY AND REGULATORY COMPLIANCE
NA
MOUNTING THICKNESS (MAXIMUM)
35mm (1.38in.)
MOUNTING THICKNESS (MINIMUM)
9mm (0.36in.)
